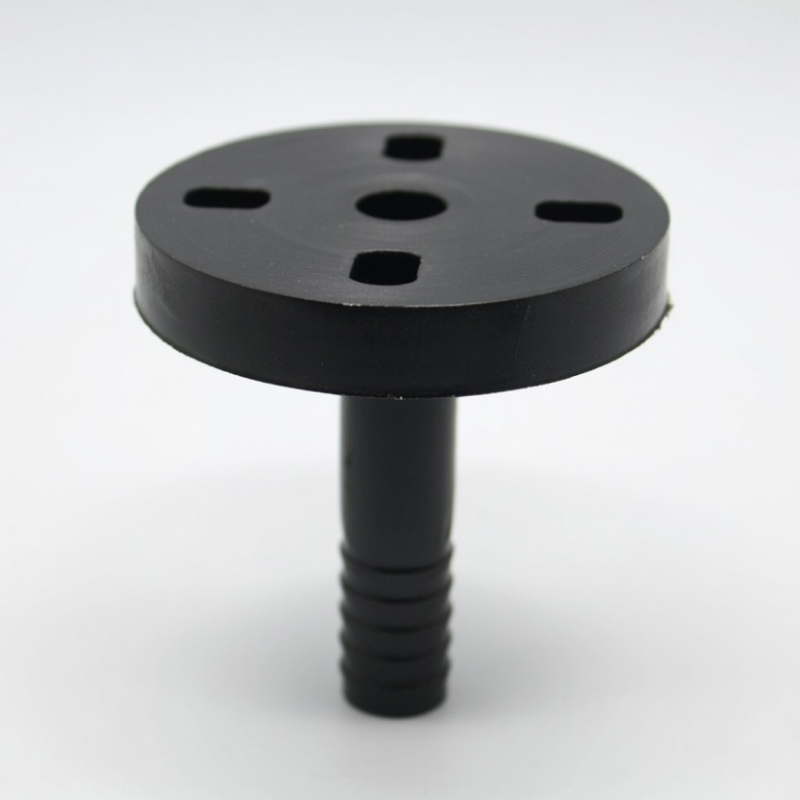

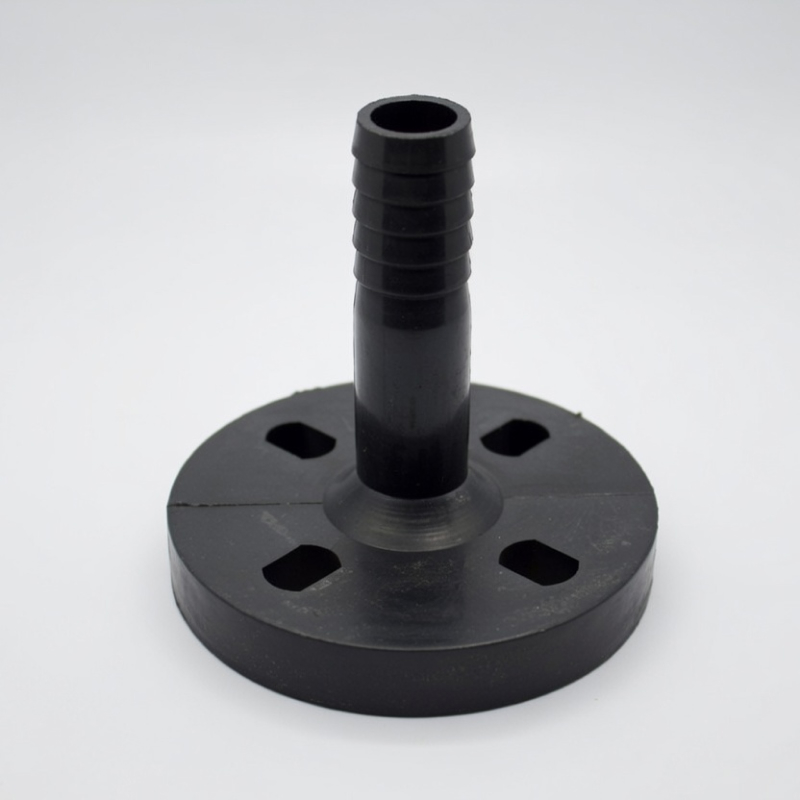

Flange End Hose Coller

Category: UPVC

SIZE (IN.)	SIZE (MM)	ØD	ØD1	ØD2	T	T1	T2
1 × 3/4	32 × 25	129	13.5	21.5	126	19	44
1 × 1	32 × 25	130	19	27	125	21	51
1½ × 1	50 × 32	140	19	26	135	20	50
1½ × 1¼	50 × 40	140	22	33	135	21	55
2 × 1	63 × 32	162	17.5	26	127	22	50
2 × 1¼	63 × 40	162	22	34	120	22	60
2 × 1½	63 × 50	162	27	40	120	22	60
2 × 2	63 × 63	162	35.5	51.5	120	22	57
3 × 1½	90 × 50	198	27	39	148	25	55
3 × 2	90 × 63	198	34	52	134	25	55
3 × 3	90 × 90	198	53	75	138	25	55
4 × 2	110 × 63	226	35	51	140	25	50
4 × 3	110 × 90	226	—	—	140	25	50
4 × 4	110 × 100	226	81.5	101	140	25	50

* All dimensions in mm (±2 mm)

Flange Drilled:
