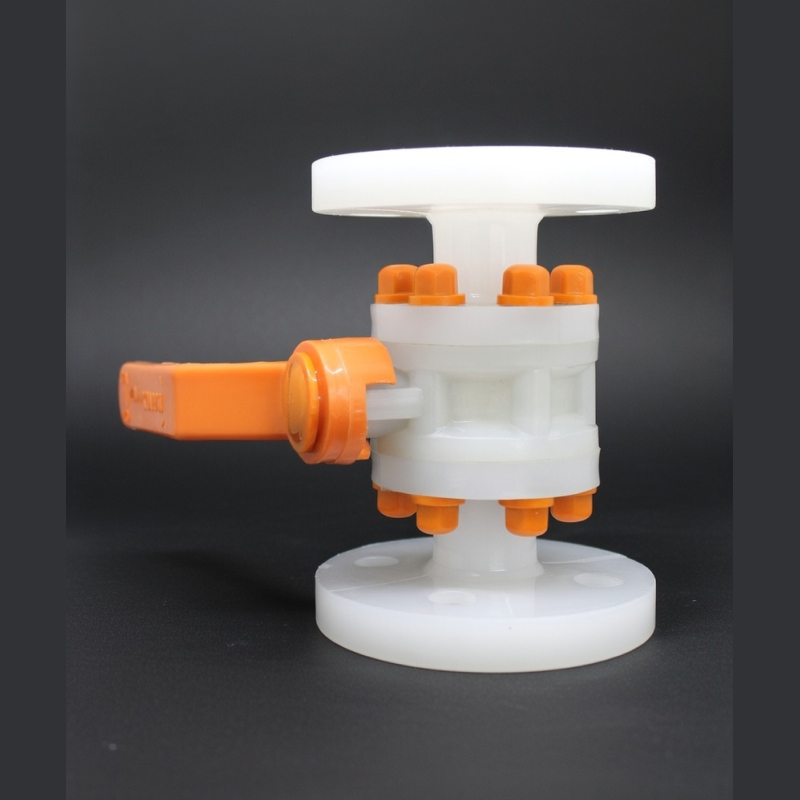

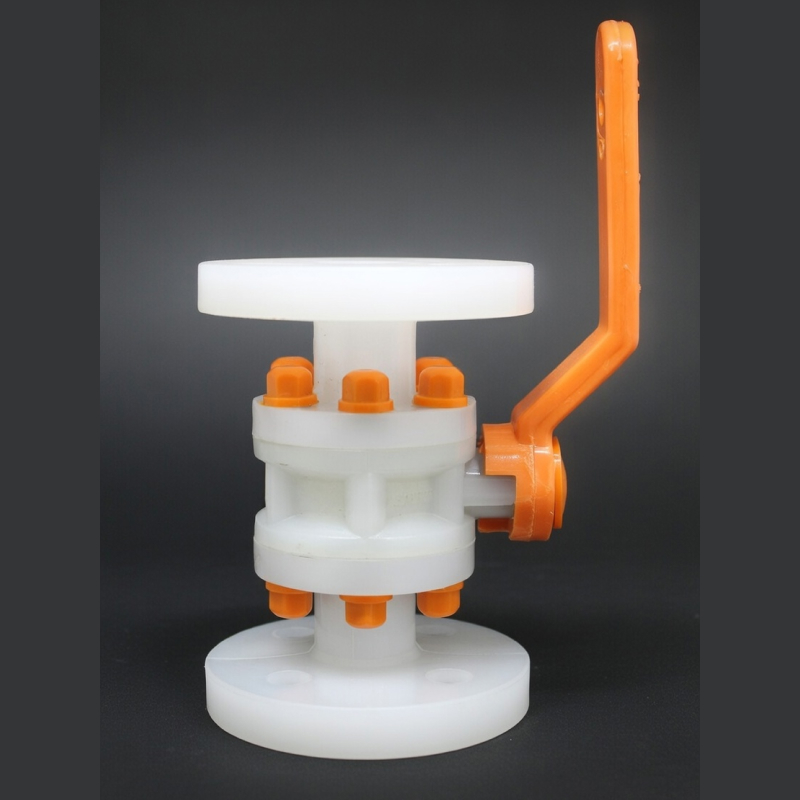

| SIZE IN. |
SIZE MM |
D | D1 | L | T | H | H1 |
|---|---|---|---|---|---|---|---|
| 1/2″ | 15 | 100 | 13.5 | 129 | 12.7 | 69 | 131 |
| 3/4″ | 20 | 101 | 19 | 142 | 14 | 75 | 131 |
| 1″ | 25 | 116 | 22.5 | 151 | 20 | 85 | 150 |
| 1 1/2″ | 40 | 138 | 38 | 180 | 21 | 110 | 215 |
| 2″ | 50 | 164 | 48 | 198 | 30 | 124 | 215 |
| 2 1/2″ | 65 | 183 | 62 | 233 | 24 | 140 | 280 |
| 3″ | 80 | 202 | 73.5 | 250 | 25 | 145 | 280 |
| 4″ | 100 | 230 | 99 | 302 | 27 | 160 | 280 |
| 6″ | 150 | 303 | 150 | 425 | 32 | 160 | 280 |
| 8″ | 200 | 356 | 200 | 497 | 35 | 283 | 498 |
ALL DIMENSIONS IN MM (±2 MM)
