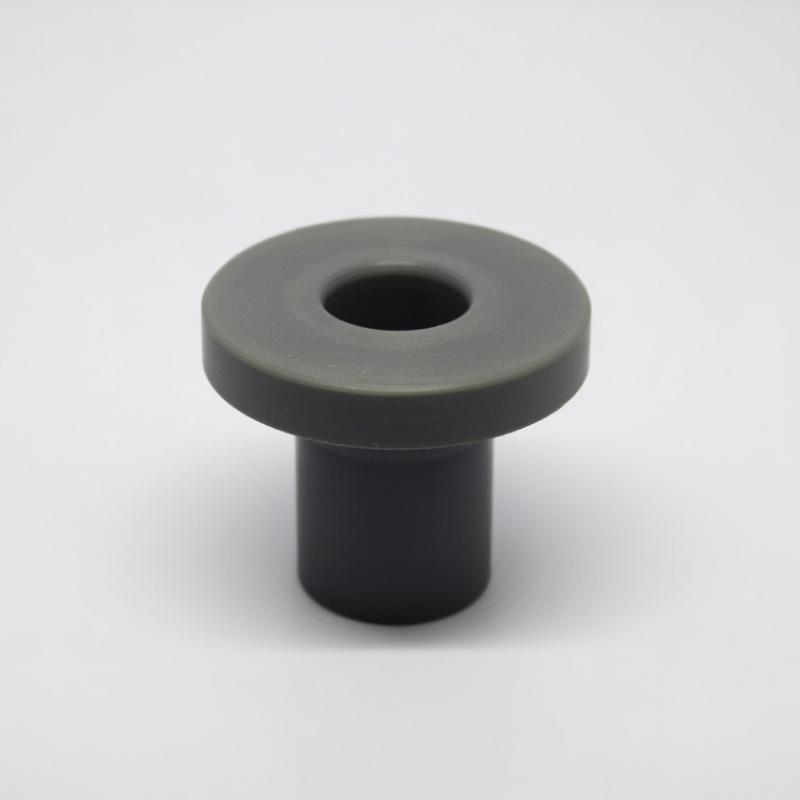

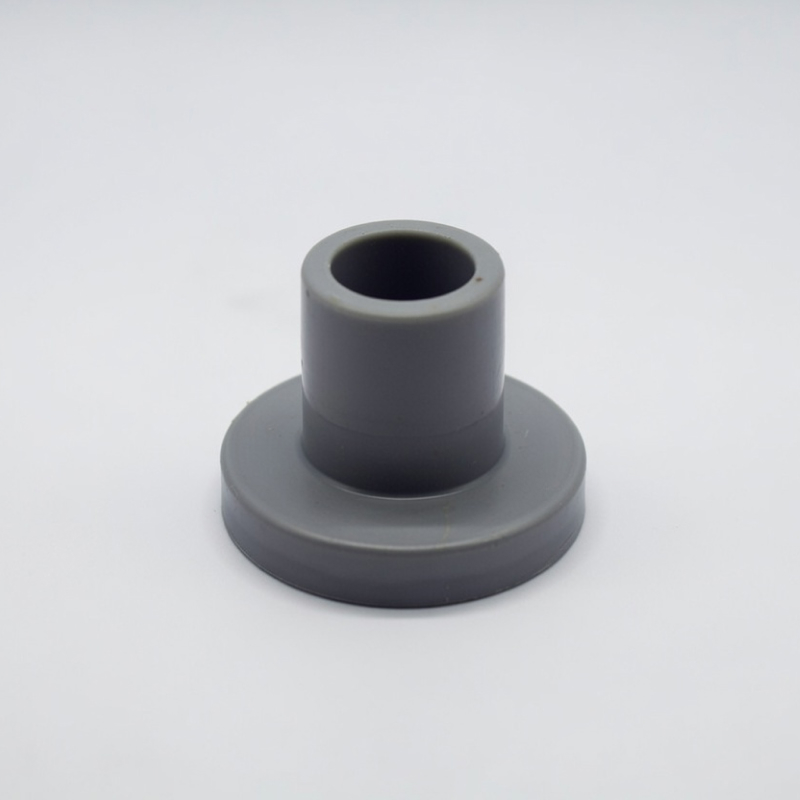

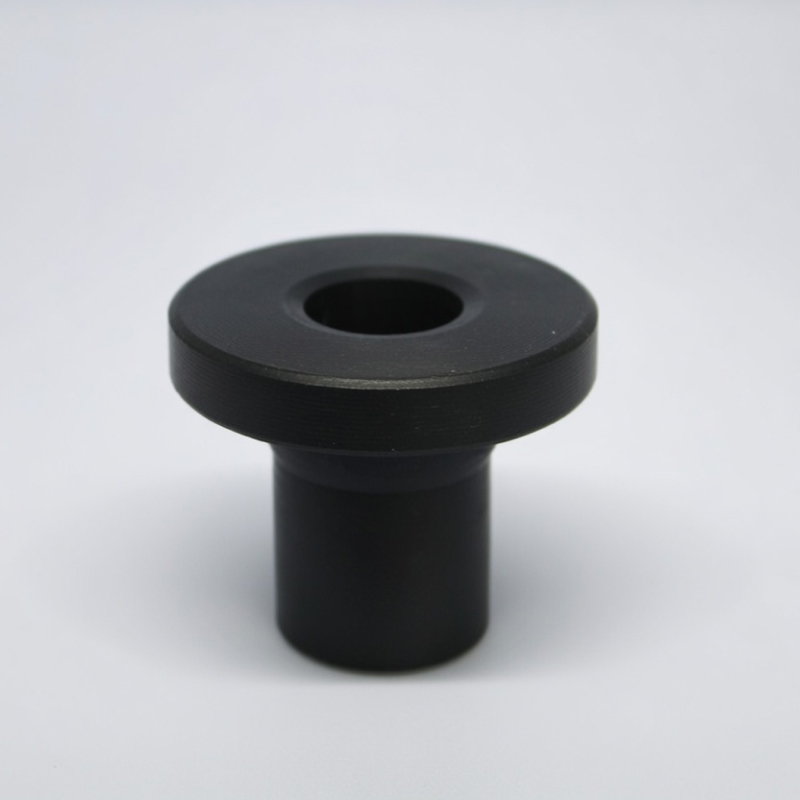

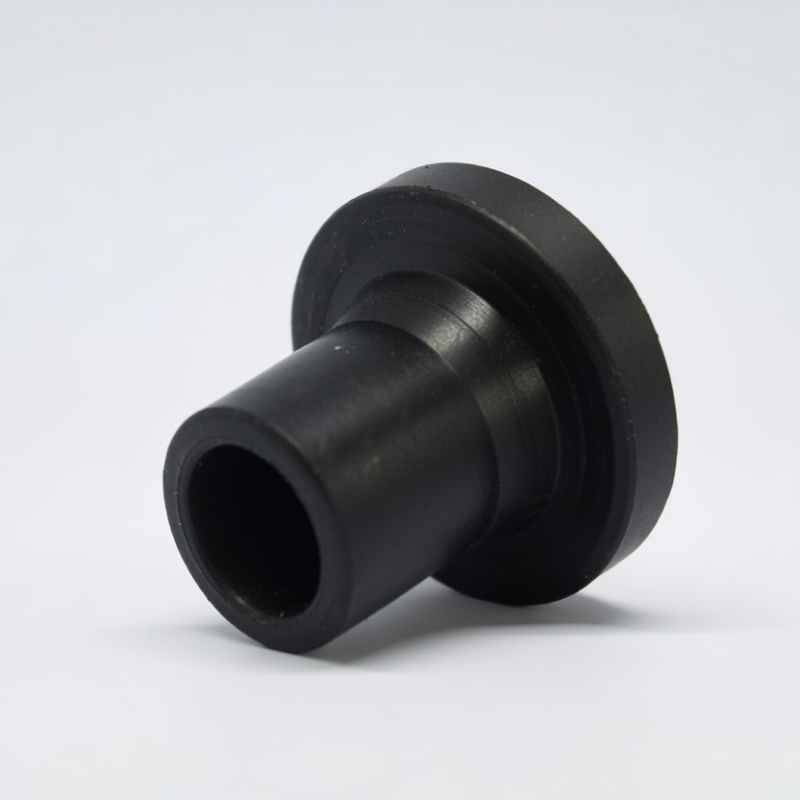

Long Neck – Pipe End
| SIZE (IN.) |
SIZE (MM) |
ØD (mm) |
ØD1 (mm) |
ØD2 (mm) |
ØD3 (mm) |
| 1/2″ |
20 |
52 |
14 |
21 |
25.5 |
| 3/4″ |
25 |
61 |
18 |
25.5 |
29 |
| 1″ |
32 |
65.5 |
23.5 |
32.5 |
36 |
| 1 1/4″ |
40 |
71 |
27 |
40 |
44 |
| 1 1/2″ |
50 |
75 |
39 |
50 |
53 |
| 2″ |
63 |
95 |
47.5 |
63 |
66 |
| 2 1/2″ |
75 |
105 |
56 |
75.5 |
78.5 |
| 3″ |
90 |
122 |
68.5 |
90 |
94 |
| 4″ |
110 |
155 |
84 |
110 |
116 |
| 5″ |
125 |
188 |
97.5 |
126 |
132 |
| 5 1/4″ |
140 |
195 |
113 |
140.5 |
147 |
| 6″ |
160 |
211 |
128 |
160 |
165 |
| 7″ |
180 |
228 |
148 |
181 |
184.5 |
| 8″ |
200 |
241 |
167 |
200 |
207 |
| 9″ |
225 |
273.5 |
191 |
225 |
231.5 |
| 10″ |
250 |
294 |
216 |
248 |
257 |
| 11″ |
280 |
325 |
209 |
280 |
285 |
| 12″ |
315 |
373 |
255 |
314 |
317 |
| 14″ |
355 |
433 |
302 |
355 |
369 |
| 16″ |
400 |
490 |
338 |
355 |
369 |
| 18″ |
450 |
536 |
380 |
400 |
418 |
| 20″ |
500 |
598 |
420 |
500 |
526 |
| 22″ |
560 |
697 |
487 |
559 |
593 |
| 24″ |
630 |
705 |
547 |
630 |
640 |
