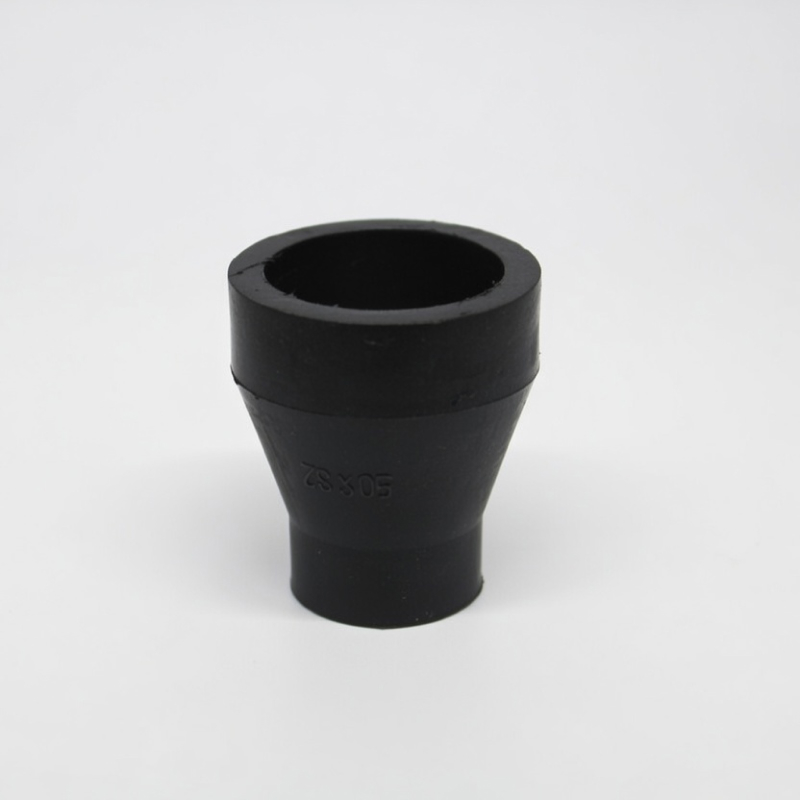

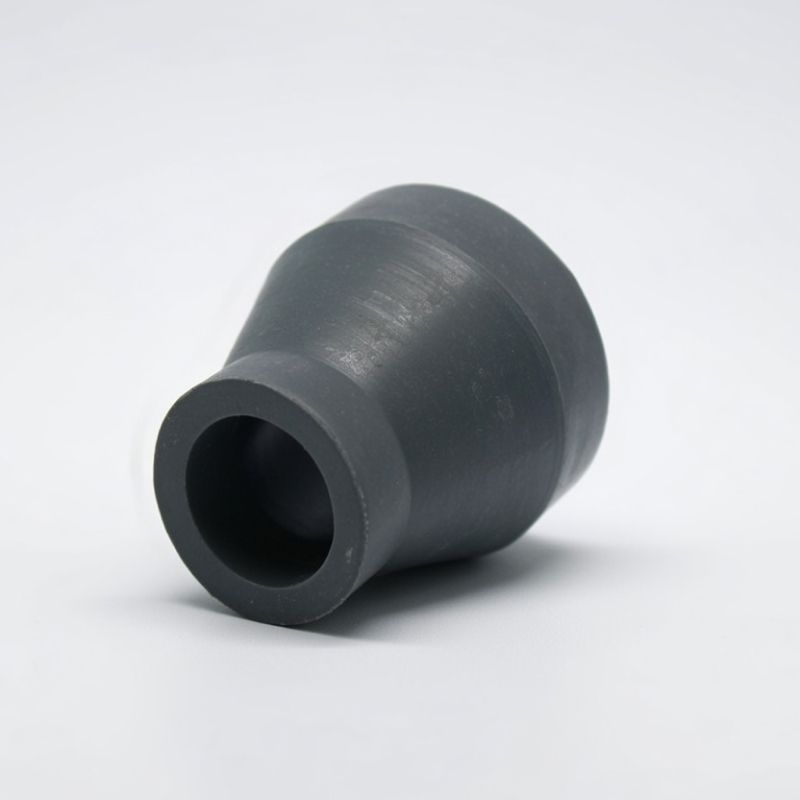

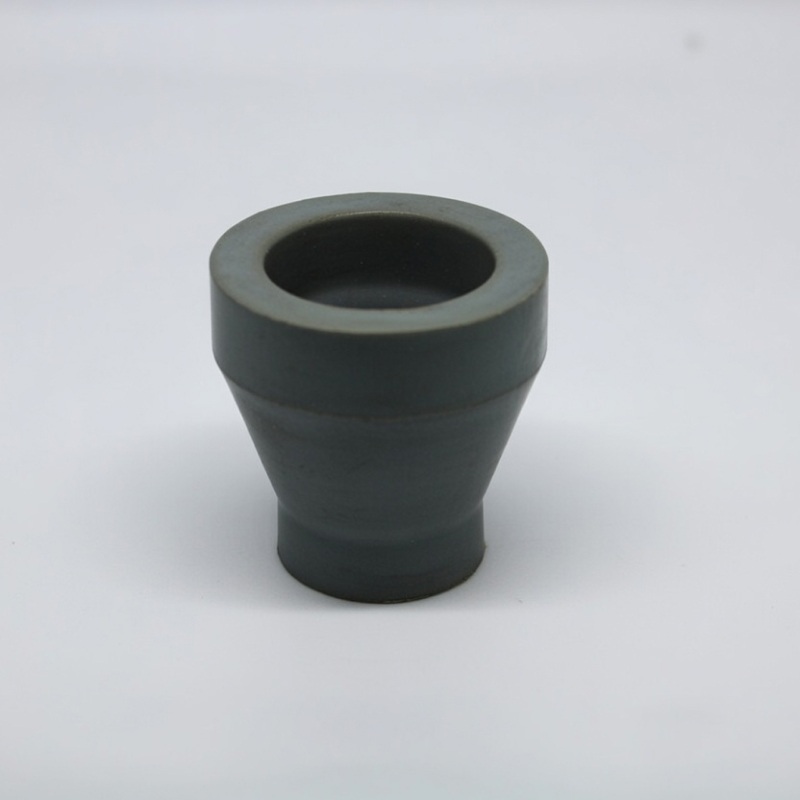

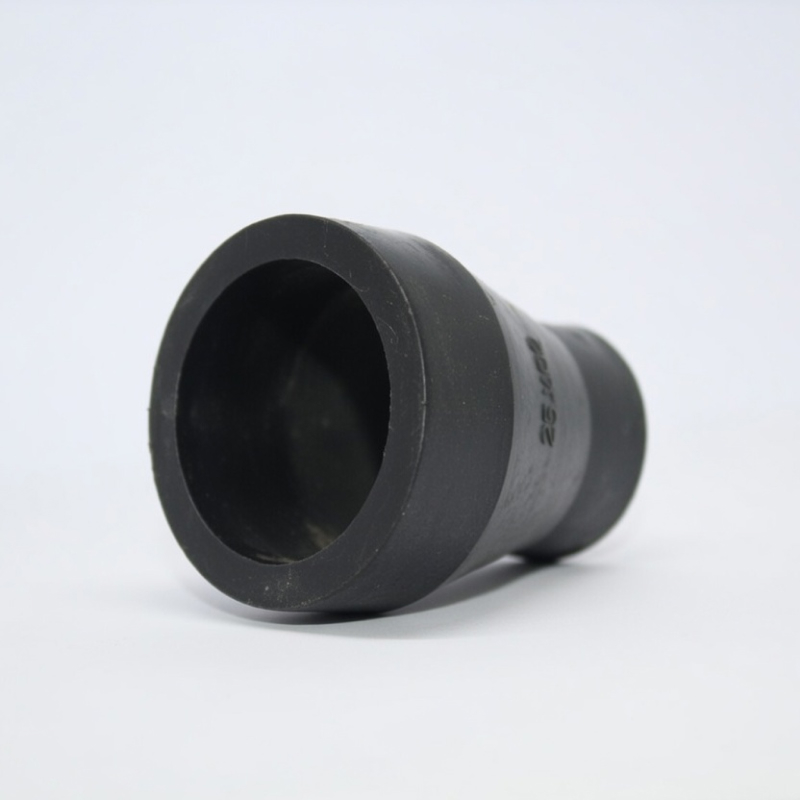

| SIZE (IN.) | SIZE (MM) | ØD (mm) | ØD1 (mm) | ØD2 (mm) | T (mm) |
|---|---|---|---|---|---|
| 1×1/2 | 32×20 | 32 | 22 | 14 | 20 |
| 1×3/4 | 32×25 | 32 | 28 | 15 | 17 |
| 1 1/4×1/2 | 40×20 | 40 | 28 | 14 | 25 |
| 1 1/4×3/4 | 40×25 | 40 | 28 | 22.5 | 20 |
| 1 1/4×1 | 40×32 | 40 | 50 | 28 | 22.5 |
| 1 1/2×1/2 | 50×25 | 50 | 40 | 20 | 20 |
| 1 1/2×3/4 | 50×32 | 50 | 34 | 30 | 40 |
| 1 1/2×1 | 50×40 | 50 | 50 | 34 | 30 |
| 2×1 | 63×32 | 63 | 45 | 21 | 28 |
| 2×1 1/4 | 63×40 | 63 | 63 | 45 | 21 |
| 2×1 1/2 | 63×50 | 63 | 44.5 | 32 | 20 |
| 2 1/2×1 | 75×32 | 75 | 55 | 27 | 40 |
| 2 1/2×1 1/4 | 75×40 | 75 | 55 | 36 | 45 |
| 2 1/2×1 1/2 | 75×50 | 75 | 55 | 45 | 60 |
| 2 1/2×2 | 75×63 | 75 | 69 | 57 | 75 |
| 3×1 | 90×32 | 90 | 70 | 25 | 32 |
| 3×1 1/4 | 90×40 | 90 | 67.5 | 29 | 39 |
| 3×1 1/2 | 90×50 | 90 | 90 | 67.5 | 29 |
| 3×2 | 90×63 | 90 | 63 | 49 | 63 |
| 3×2 1/2 | 90×75 | 90 | 69 | 57 | 75 |
| 4×1 | 110×32 | 110 | 82 | 23 | – |
| 4×1 1/4 | 110×40 | 110 | 82 | 29 | – |
| 4×1 1/2 | 110×50 | 110 | 82 | 34 | – |
| 4×2 | 110×63 | 110 | 82 | 52 | – |
| 4×3 | 110×90 | 160 | 82 | 78 | – |
| 6×2 | 160×63 | 160 | 130 | 44 | – |
| 6×3 | 160×90 | 160 | 131 | 85 | – |
| 8×2 | 200×63 | 200 | 163 | 49 | – |
| 8×3 | 200×110 | 200 | 163 | 85 | – |
| 8×6 | 200×160 | 200 | 163 | 139 | – |
| 8×7 | 225×63 | 225 | 182 | 49 | – |
| 9×3 | 225×90 | 225 | 182 | 70 | – |
| 9×6 | 225×160 | 225 | 182 | 124 | – |
| 10×2 | 250×63 | 250 | 200 | 58 | – |
| 10×3 | 250×90 | 250 | 203 | 71 | – |
| 10×4 | 250×110 | 250 | 201 | 84 | – |
| 10×6 | 250×160 | 250 | 201 | 153 | – |
| 10×8 | 250×200 | 250 | 201 | 153 | – |
| 12×4 | 315×110 | 315 | 254 | 84 | – |
| 12×6 | 315×160 | 315 | 257 | 125 | – |
| 12×8 | 315×200 | 315 | 255 | — | – |
| 12×10 | 315×250 | 315 | 257 | — | – |
All dimensions in mm (±2 mm)
